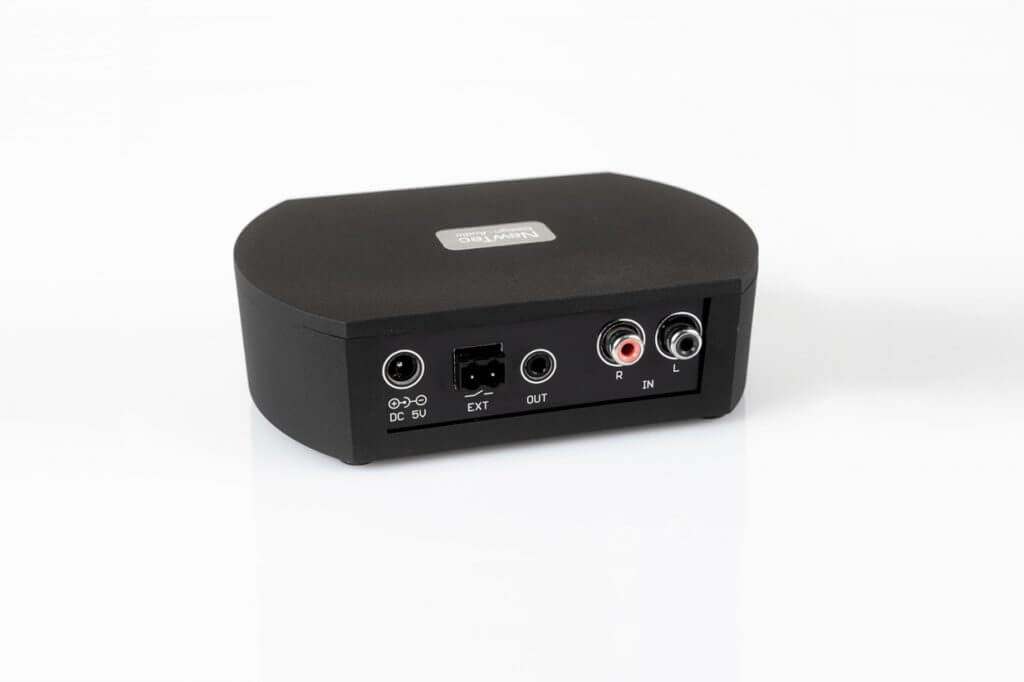

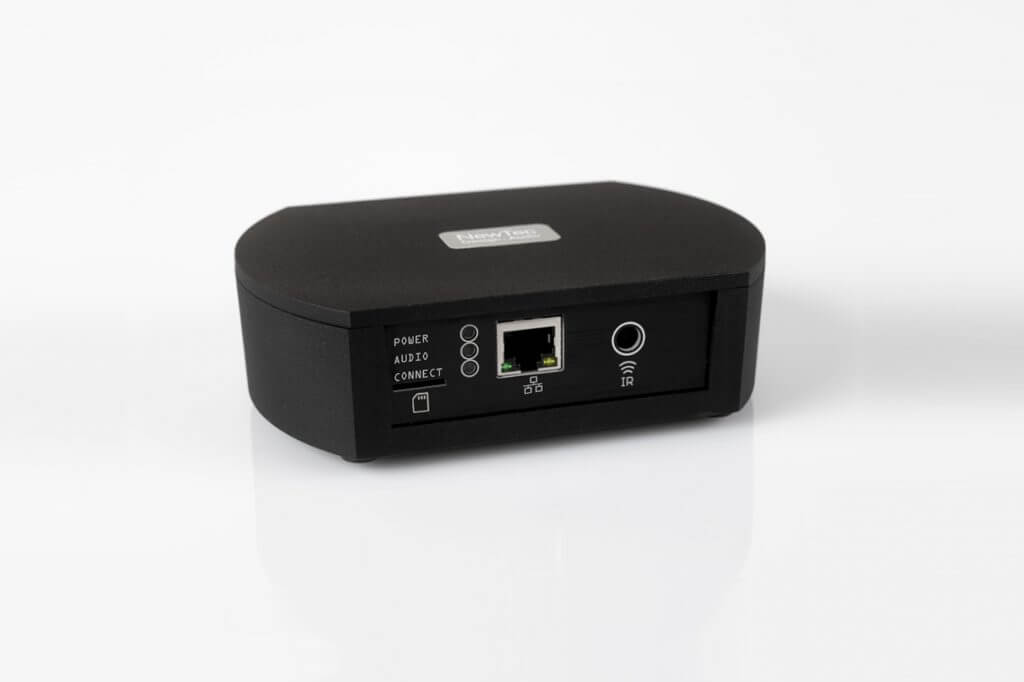

| Term | NewTec SMARTplayer |
| Application | Wireless Transmitter for NewTec SMART Audio Systems |
| Enclosure | ASA painted |
| Dimensions (lxLxT) | 14 x 4 x 11 5 cm |
| Weight | 240 gr. |
| Connection | 1 x LAN: Ethernet Port RJ45 100Mbit/s 1 x RCA Stereo IN (Cinch) 1 x Potential-free Contact (for MUTE Switch) 1 x Infrarot 3 x RGB LEDs for Status display An access point is required for WLAN access |
| Protection class | IP20 |
| Radio Frequency | 1 9 Ghz n-DECT |
| Transmission | 48.000 Hz/16Bit (20 Hz – 20 kHz) |
| Power consumption | Max. 5 Watt |
| Features | Analog and digital audio input Online web streams can be played directly Infrared remote control for easy control Web interface for detailed settings Unrestricted integration of NewTec loudspeakers Several SMARTplayers can be operated in parallel in the same room Wireless firmware update of the speakers (OTA) SD card (memory for backup music if online stream is not available) Fully automatic pairing mode No internet connection or software required for commissioning Easy installation Reset function – restore factory settings |
| Power supply | 100-240V AC / 5V DC 1.000 mA |
| Article Code | 200705 |
| Carton Content | NewTec SMARTplayer Power adapter (5 V 1 A) Quick setup Guide Manual Remote Control (inkl. 2 x AAA Batteries) |
